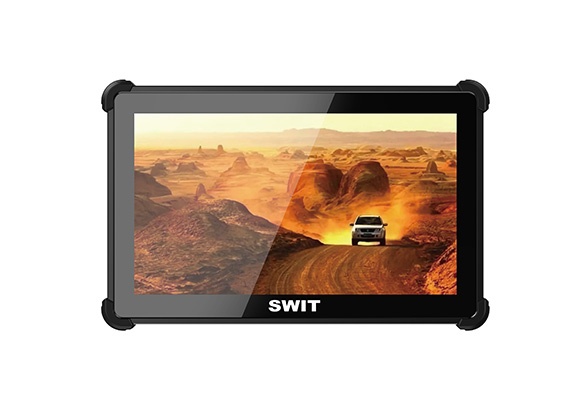

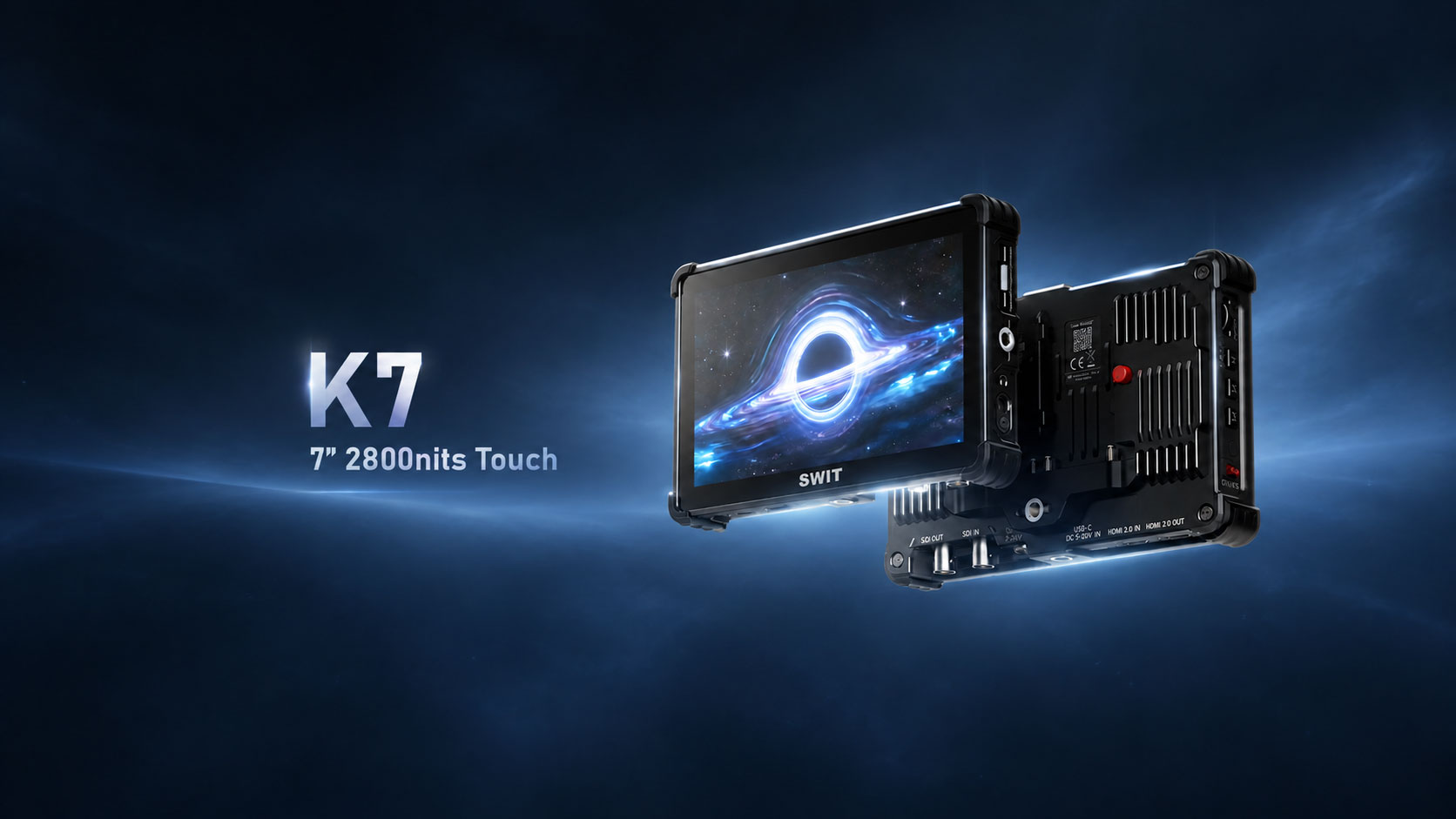

SWIT K7
7-inch 2,800nit Touchscreen Cine Monitor
Key specifications
01 / Built for the set

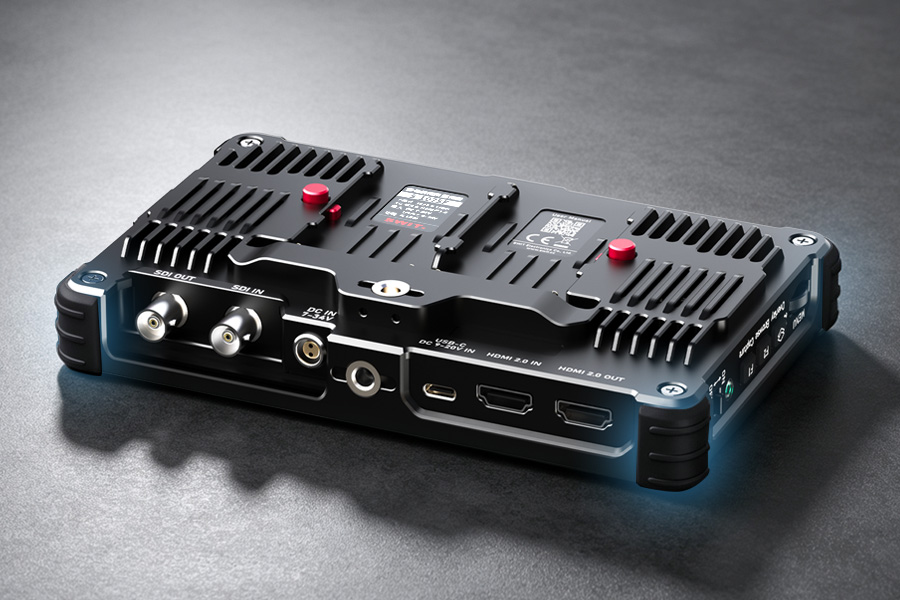

Full metal.
Protected corners.
K7 pairs an all-metal body with protective rubber corner guards. Touchscreen operation and physical controls provide direct access to monitor functions on the rig.
ALL-METAL BODY / RUBBER CORNER GUARDS

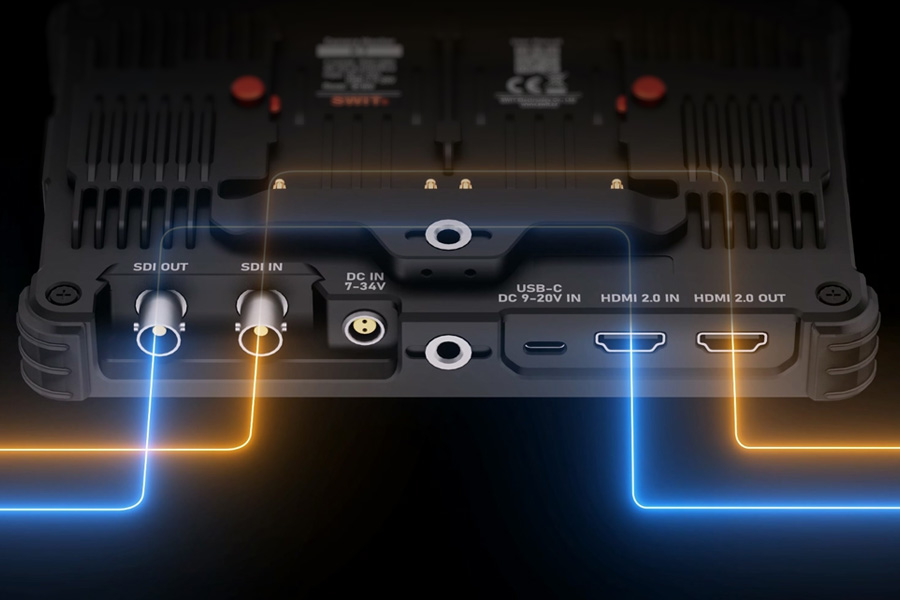

02 / Connected to your workflow
SDI meets HDMI.
3G/HD-SDI and HDMI 2.0 provide input and loop output, with built-in conversion between the two formats. HDMI accepts signals up to 4K60p, while LUT output is available over SDI and HDMI.
3G/HD-SDI / HDMI 2.0 / CROSS CONVERSION

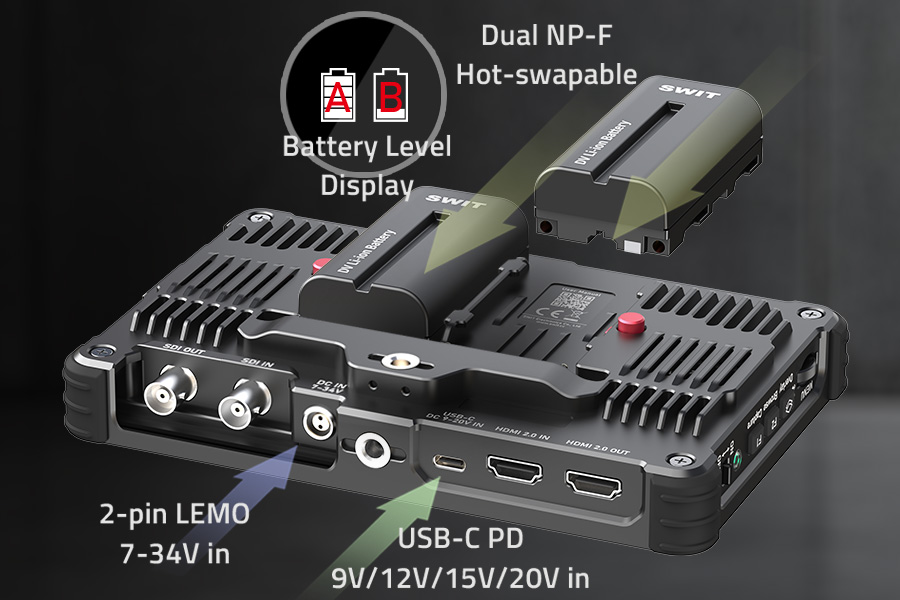

03 / Power for your setup
Hot-swap power for the rig.
Dual NP-F slots support hot-swapping. External power is accepted through 2-pin LEMO at 7-34V DC or USB-C PD at 9-20V.
DUAL NP-F / LEMO 7-34V / USB-C PD 9-20V

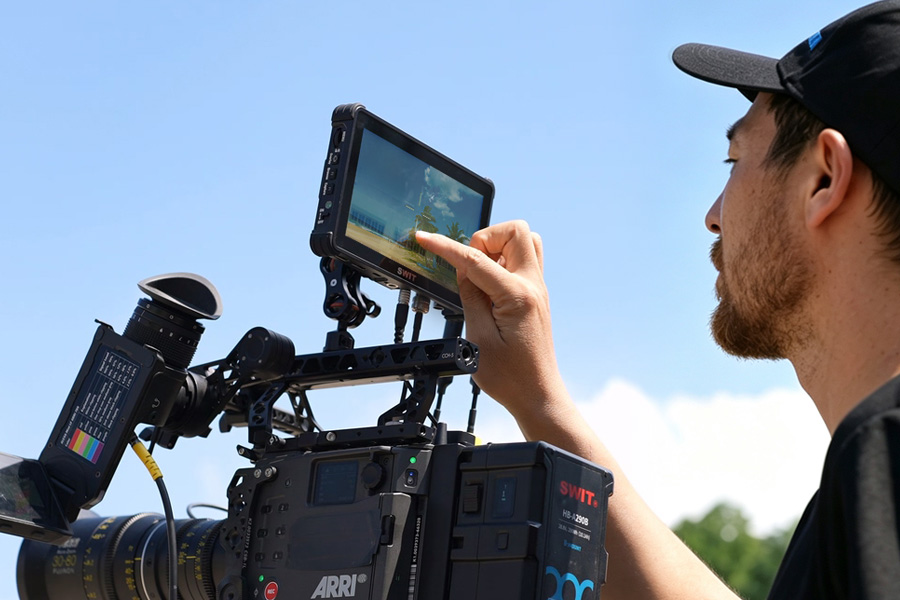

Daylight monitoring.
Check focus, exposure and composition on camera during daylight shoots.

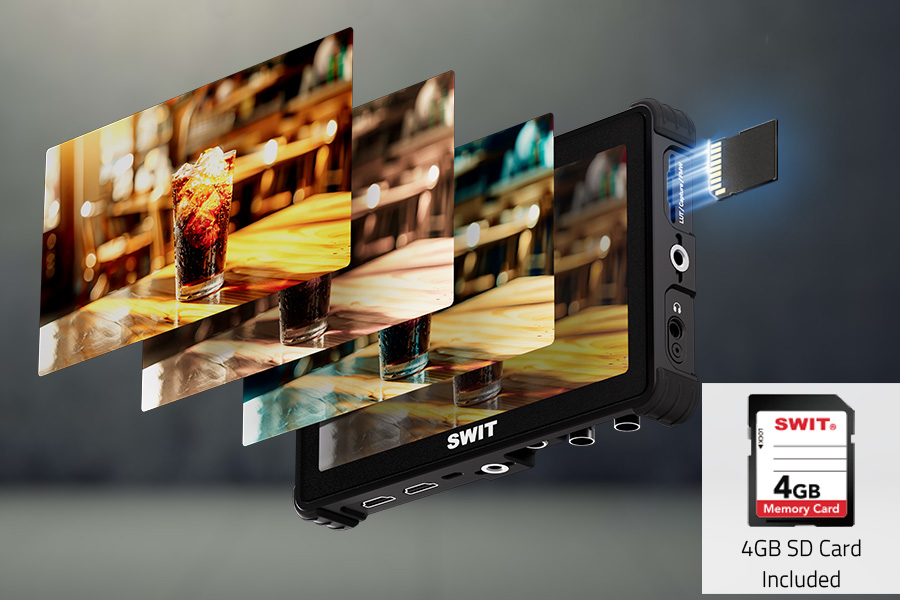

LUT and touch controls.
Load. Preview. Output.
Use built-in DeLog LUTs or import your own via SD card, then send the look onward with LUT output. A 4GB SD card is included.

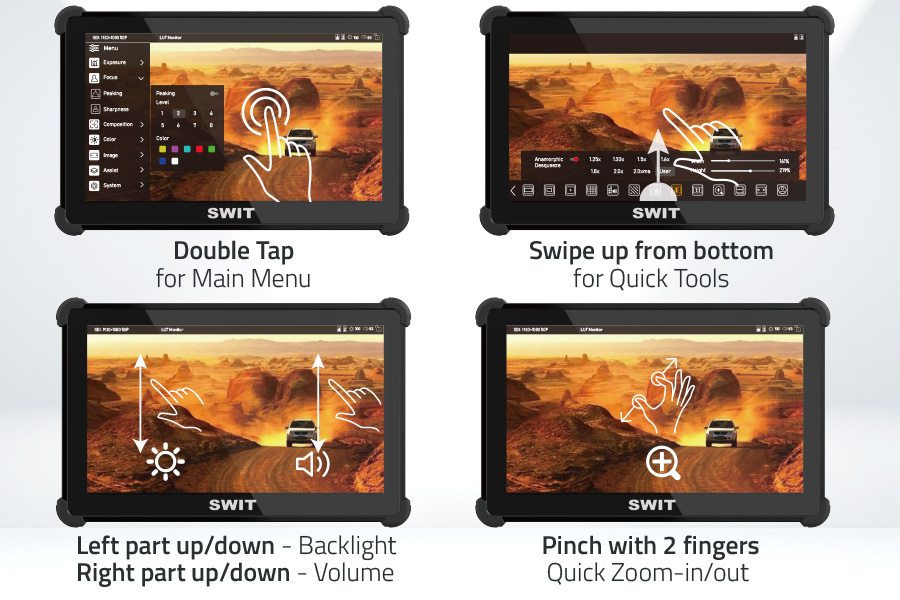

Touch and take control.
Double tap for the main menu, swipe for quick tools or pinch to zoom. Physical controls provide another way to operate the monitor.
Image-assist tools.
Exposure and focus
Peaking, zebra with IRE from -7 to +109, false color with ARRI or Spectrum modes, and full assist scopes.
Capture and overlay
Capture a reference frame and overlay it with adjustable transparency to match composition between shots.
Anamorphic and vertical rigs
Custom de-squeeze ratios from 0.5x to 2x accommodate anamorphic setups. Rotate or flip the OSD for vertical rig configurations.
Audio at a glance
Four-channel audio meters and a 3.5mm output bring audio monitoring alongside the picture.
Additional tools include waveform, vector, histogram, scale markers, grids and safe-area guides.

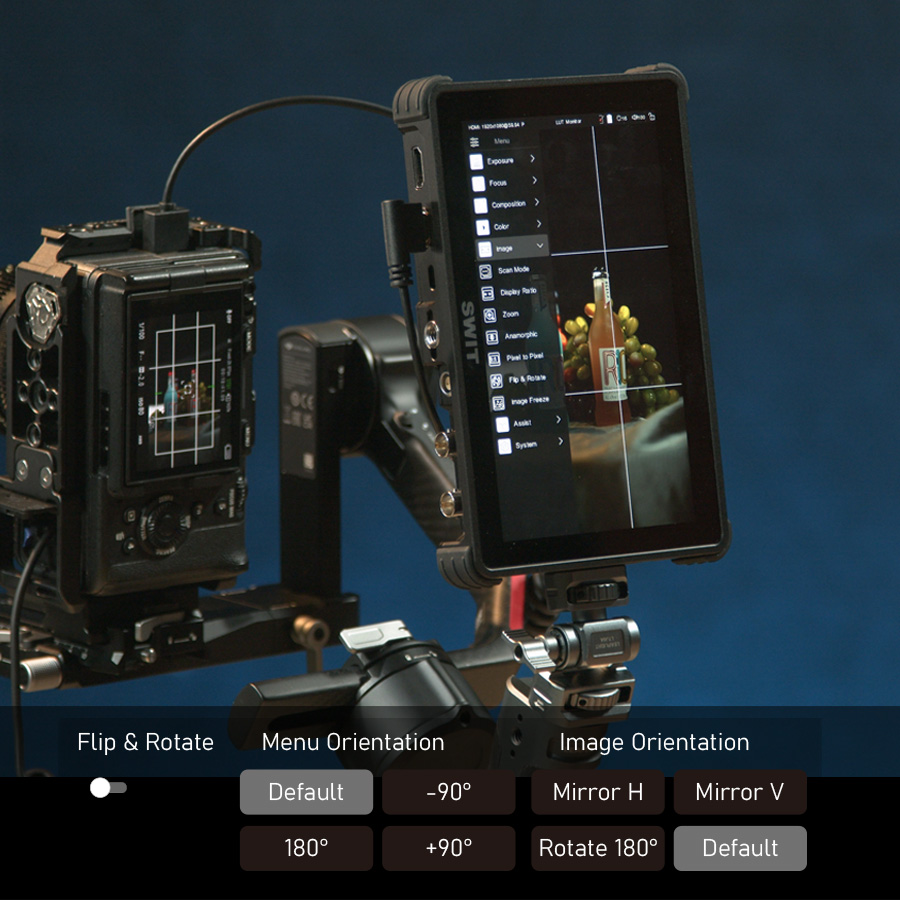

Vertical camera rigs
Turn the monitor with the rig.
Rotate or flip the on-screen display to match the monitor orientation on vertical builds.
Technical specifications
| Display | 7-inch, 1920 x 1080 Full HD, optically bonded touchscreen |
|---|---|
| Brightness | 2,800nits |
| Construction | All-metal body with protective rubber corner guards |
| SDI | 3G/HD-SDI input and loop output |
| HDMI | HDMI 2.0 input and loop output; supports signals up to 4K60p |
| Conversion | SDI/HDMI cross conversion |
| Power | Dual NP-F hot-swap; 2-pin LEMO 7-34V DC; USB-C PD 9-20V |
| LUT | Built-in DeLog LUTs; SD-card user LUT import; SDI/HDMI LUT output |
| Image assist | Peaking; zebra IRE -7 to +109; ARRI or Spectrum false color; waveform; vector; histogram; grids; scale markers; safe areas |
| Other functions | Screenshot capture and adjustable reference overlay; 0.5x-2x anamorphic de-squeeze; rotatable/flippable OSD; four-channel audio meters; 3.5mm audio output |
| Included | 4GB SD card |
Frequently asked questions
Does K7 have a 4K screen?
K7 has a 1920 x 1080 Full HD display. Its HDMI 2.0 connections support signals up to 4K60p.
How bright is the K7 monitor?
The optically bonded 7-inch Full HD display is rated at 2,800nits.
Which video inputs, outputs and conversion options does K7 offer?
K7 provides 3G/HD-SDI and HDMI 2.0 inputs and loop outputs, with built-in cross conversion between formats.
How can K7 be powered?
K7 supports dual NP-F batteries with hot-swap, 2-pin LEMO 7-34V DC input and USB-C PD 9-20V input.
Can I import my own LUTs?
Yes. User LUTs can be imported via SD card. K7 also includes built-in DeLog LUTs and supports LUT output.
Can K7 capture and overlay reference images?
Capture screenshots to the SD card, then place a reference image over the live picture with adjustable transparency.
What image-assist tools are built into K7?
Peaking, zebra, ARRI or Spectrum false color, waveform, vector scope, histogram, grids, scale markers and safe areas.
Can I use K7 on a vertical rig?
Yes. The on-screen display can be rotated or flipped for vertical monitor configurations.
Does K7 support anamorphic de-squeeze?
Yes. K7 offers custom 0.5x to 2.0x anamorphic de-squeeze, including 1.25x and 1.5x modes.
Is the MA-K7CAGE cage and sunhood included?
No. The MA-K7CAGE monitor cage and sunhood kit is an optional accessory and is sold separately.
