Complete USB-C Power Accessory Line for Professional Filmmaking
8 Products Complete Lineup

Complete Power Solutions

Universal power accessories built for professional filmmaking. From camera-specific dummy batteries to multi-device expanders, we have the perfect power solution for your workflow.

Power Solutions for Every Need

From solo indie shooting to big budget team production, we have the perfect power accessory for your workflow. All models support USB-C Power Delivery for flexible power options, compatible with power banks, V-mount batteries, and standard chargers.

Dual Power Solution

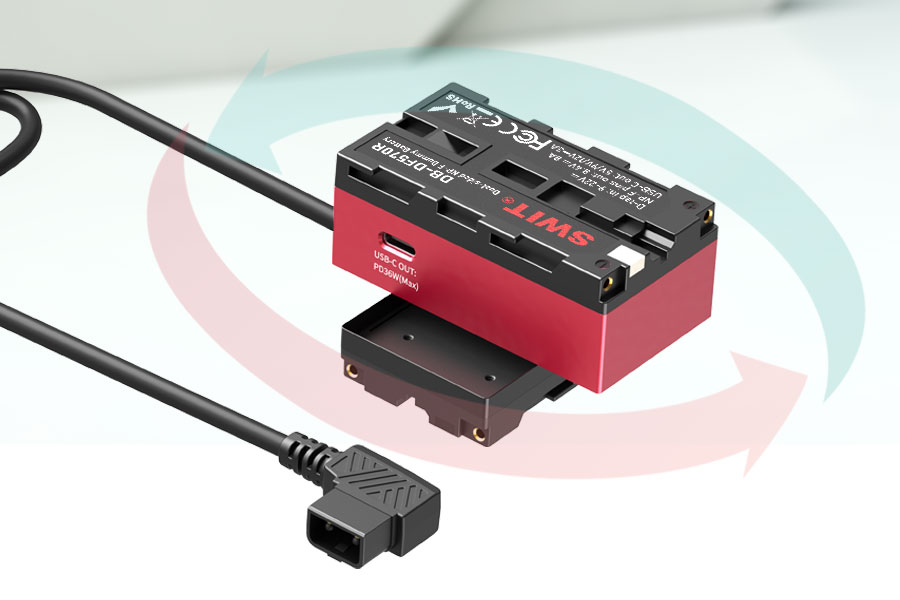

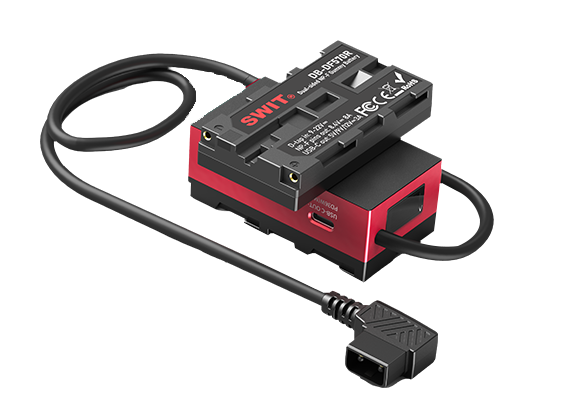

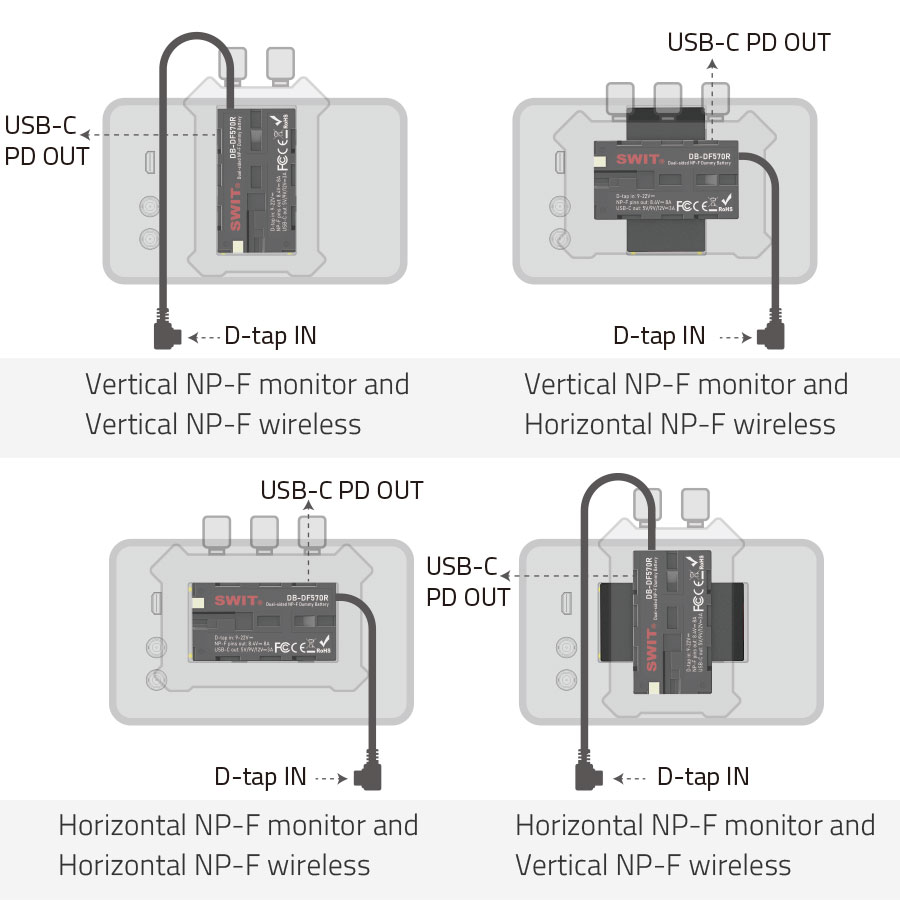

       DB-DF570R 270° Rotate Dual Sided NP-F Dummy Battery

DB-DF570R

270° Rotate Dual Sided NP-F Dummy Battery

Innovative 270° rotatable design, fits both horizontal and vertical NP-F ports, power two devices at the same time, with extra USB-C output for multi-device shooting.

Input                D-tap 9-22V
NP-F Output                8.4V 8A Total
USB-C Output                PD 5/9/12V 3A
Rotation                270° Free Rotation
DB-DF570R Connection Diagram
Long Runtime Solution

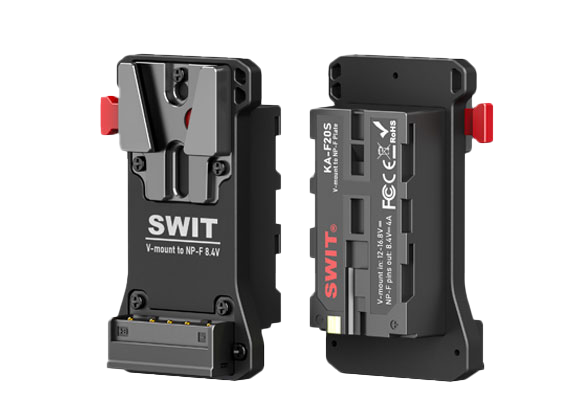

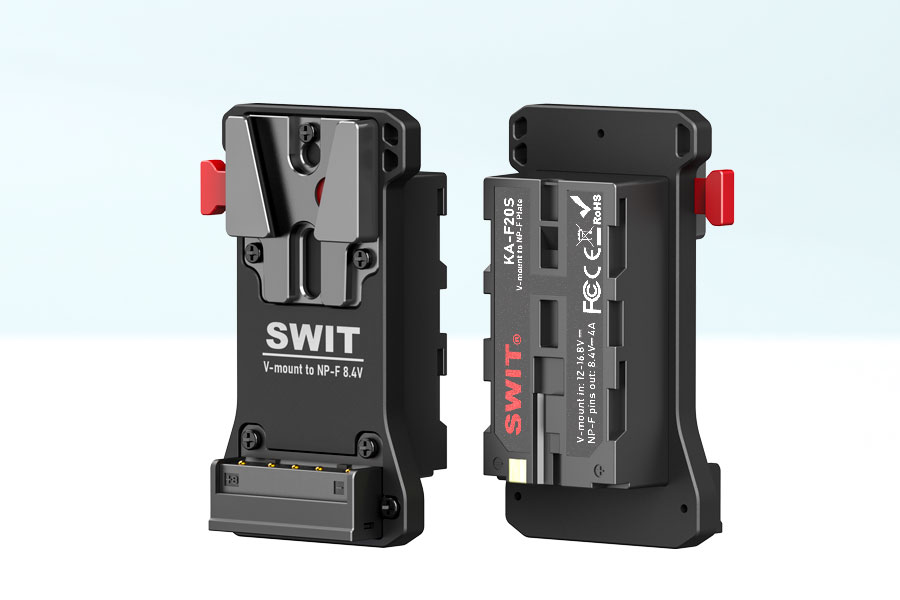

       KA-F20S V-mount to NP-F 8.4V Plate

KA-F20S

V-mount to NP-F 8.4V Plate

Convert high-capacity V-mount battery to NP-F power, provide ultra-long runtime for small cameras. Full metal housing, unique step-down balance design for stable installation.

Input                V-mount 12-16.8V
Output                8.4V 4A Regulated
Housing                Full Metal
Dimension                100×55×37mm

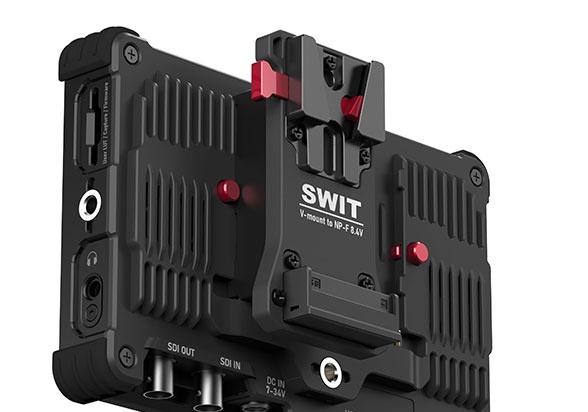

KA-F20S Product Diagram
Multi-device Expansion

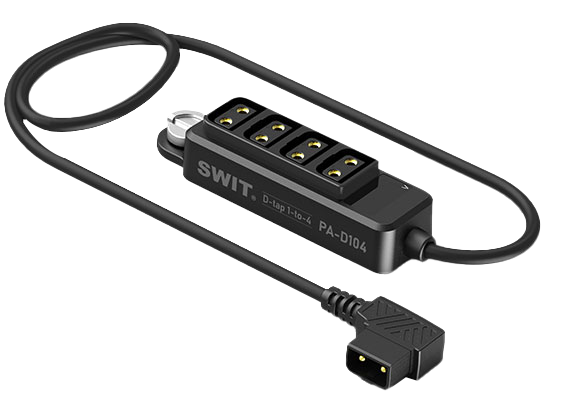

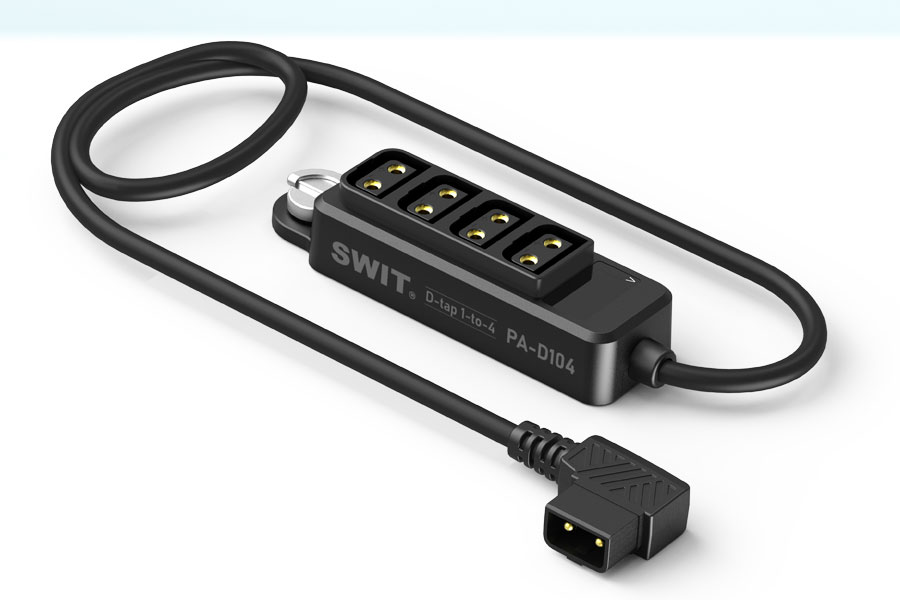

       PA-D104 D-tap 1×4 Splitter Hub

PA-D104

D-tap 1×4 Splitter Hub

Expand single D-tap port to 4 outputs, power monitor, wireless transmitter, light and more devices at the same time. With 1/4" mount hole, can be fixed on your rig directly.

Input                D-tap 12-16.8V
Output                4× D-tap Ports
Total Load                10A Max
Mount                1/4" Screw Hole

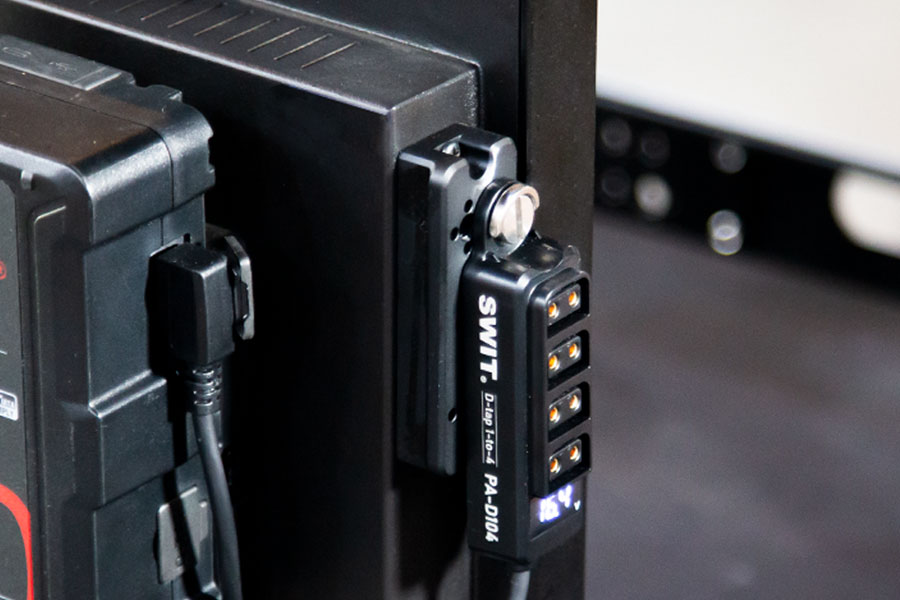

PA-D104 Mounting Diagram
USB-C Solution

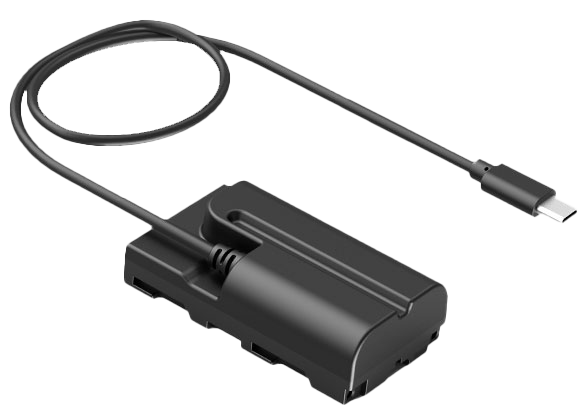

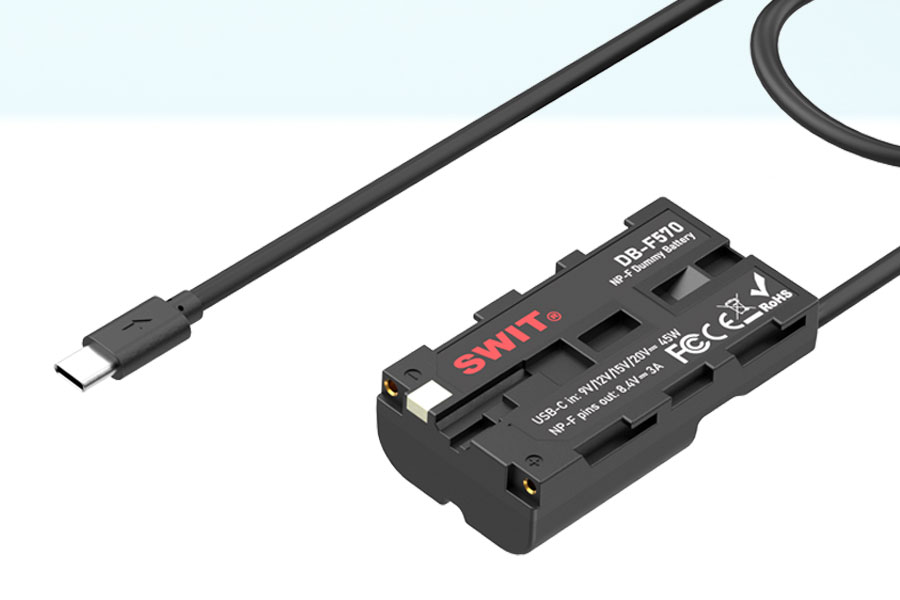

       DB-F570 NP-F type USB-C Dummy Battery

DB-F570

NP-F type USB-C Dummy Battery

Power your NP-F compatible cameras and video devices with external USB-C power source. Works with power banks, V-mount batteries and other USB-C power supplies, completely eliminate the runtime limit during shooting.

Input                9/12/15/20V PD
Output                8.4V 3A Regulated
Battery Info                SONY Device Support
Cable Length                50cm

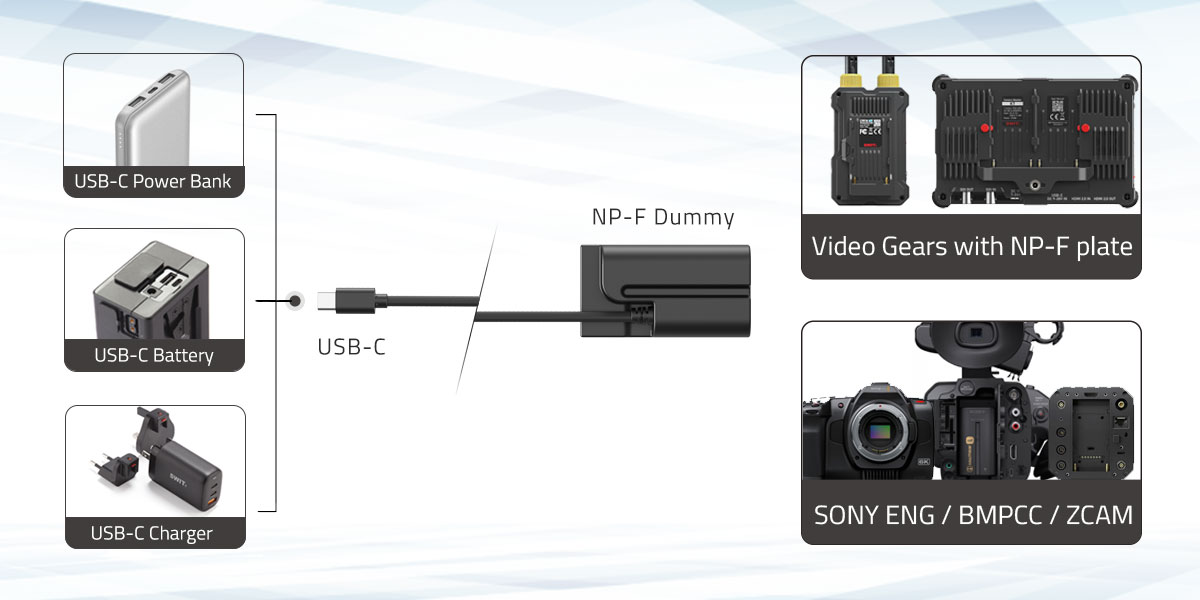

DB-F570 Connection Diagram
SONY Camera Solution

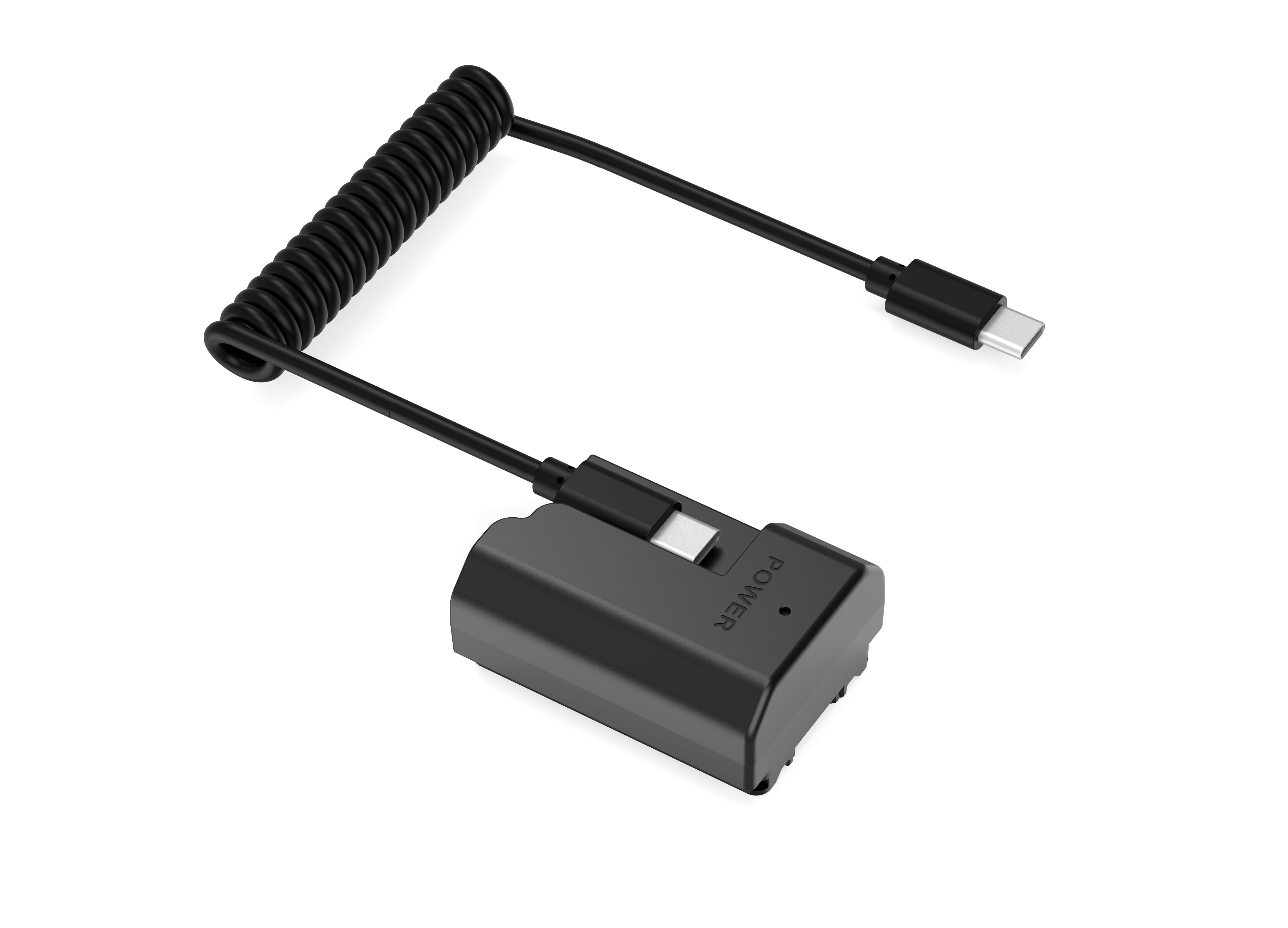

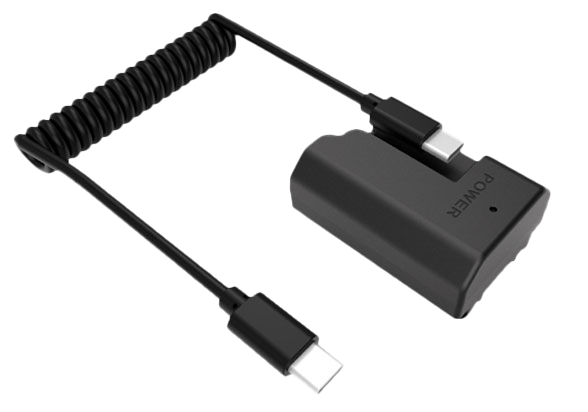

       DB-FZ100 SONY NP-FZ100 USB-C Dummy Battery

DB-FZ100

SONY NP-FZ100 USB-C Dummy Battery

The DB-FZ100 delivers stable 8.4V/3A output for Sony FX3/FX30, A7/A9 series, and other NP-FZ100-based mirrorless cameras. Ideal for run-and-gun cinematographers and hybrid creators needing long-lasting USB-C power.

Input                USB-C PD 9-20V
Output                8.4V 3A Regulated
Compatibility                Sony FX3/FX30/A7
Interface                NP-FZ100 Dummy

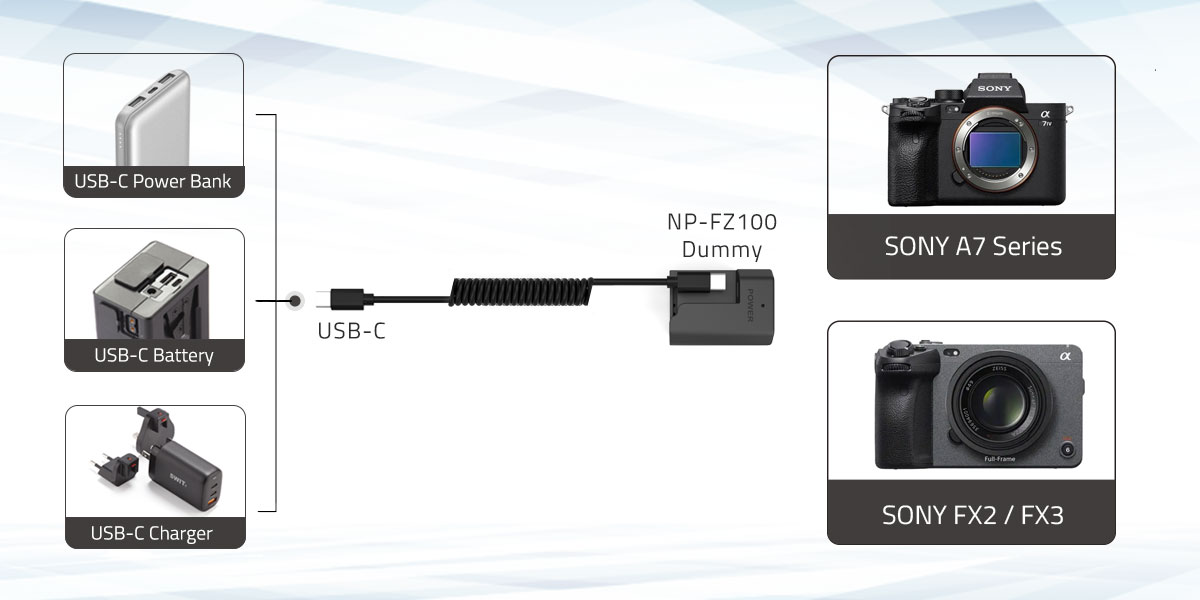

DB-FZ100 Connection Diagram
Canon Camera Solution

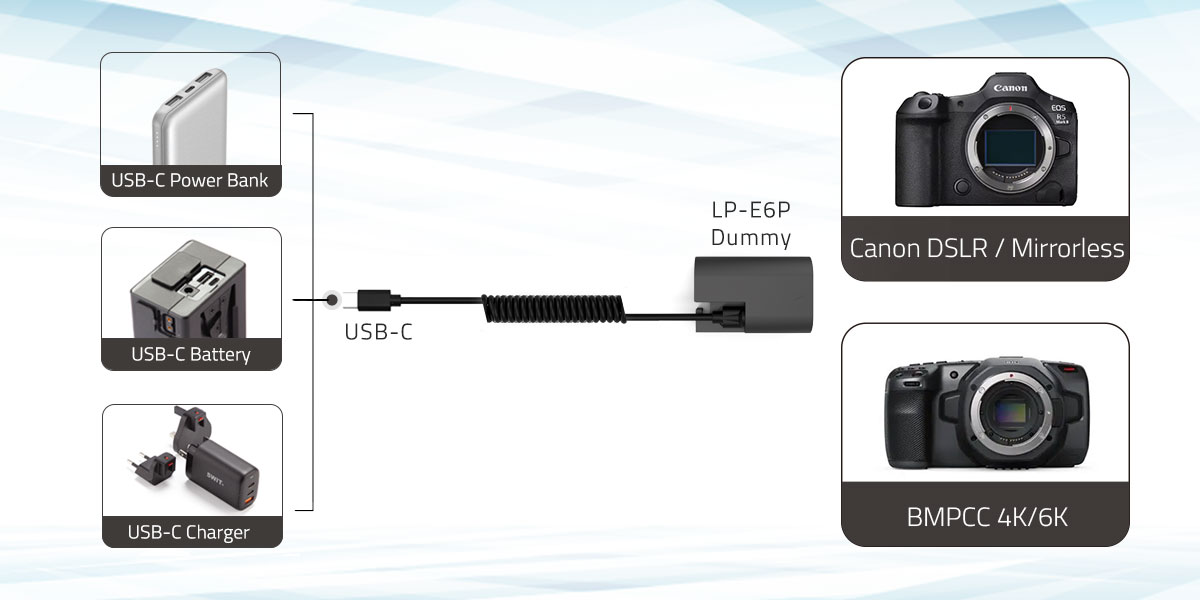

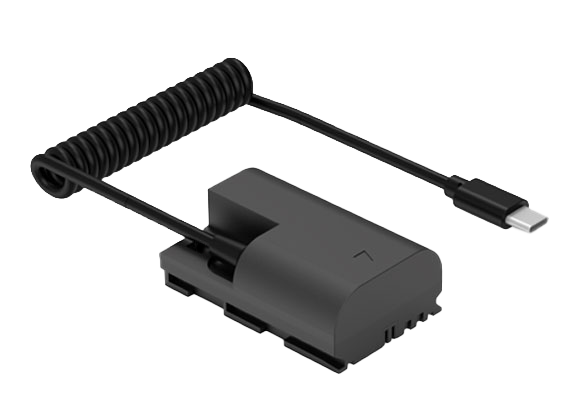

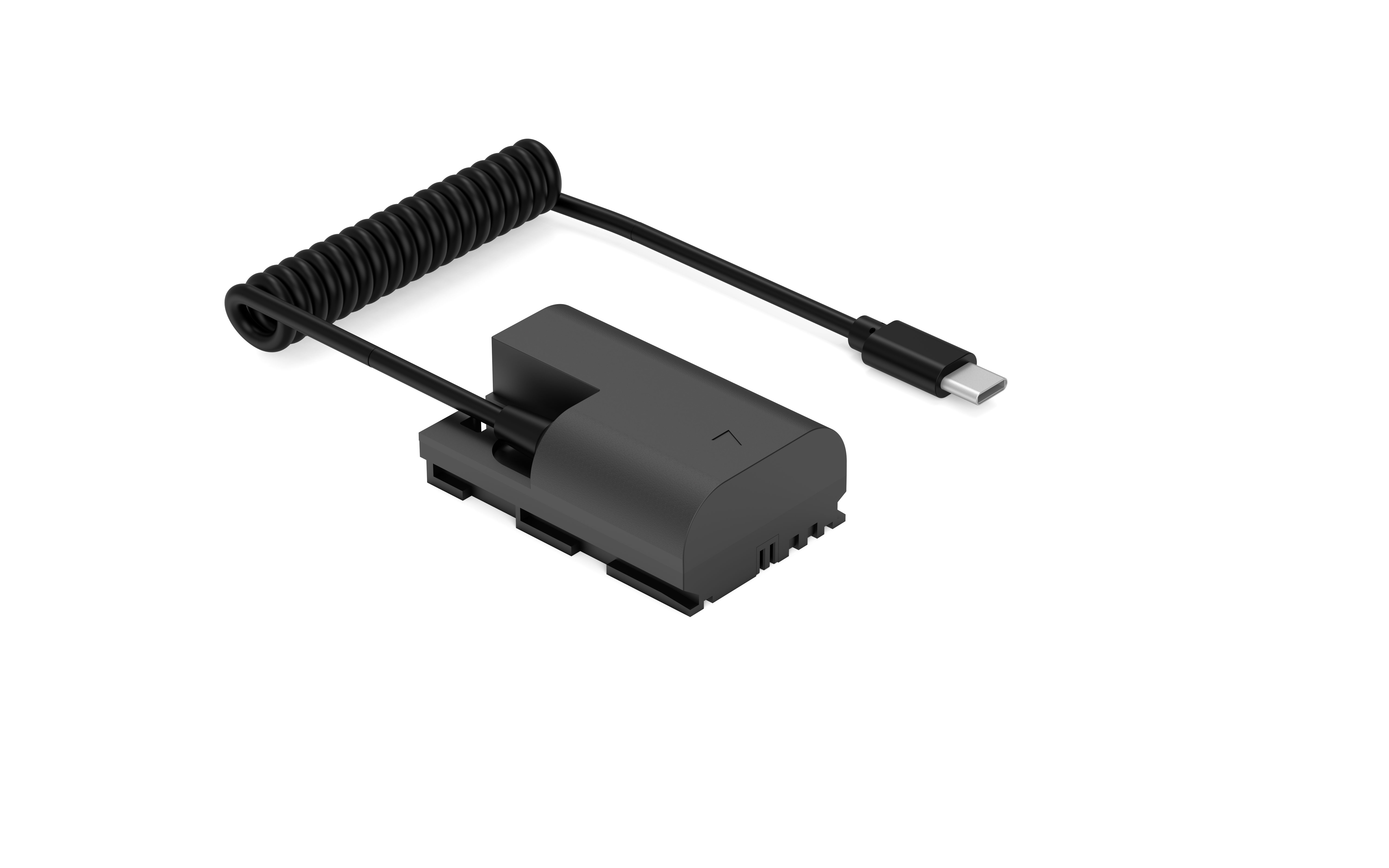

       DB-E6P Canon LP-E6P USB-C Dummy Battery

DB-E6P

Canon LP-E6P USB-C Dummy Battery

Designed for Canon EOS and compatible cinema cameras, the DB-E6P offers an 8.4V/3A regulated output and supports Canon LP-E6, LP-E6N, LP-E6NH, and LP-E6P batteries. Compatible models include Canon R5/R5M2/R6/R6M2/R7/R, EOS 5D/6D/7D series, and BMPCC 4K/6K models.

Input                USB-C PD 9-20V
Output                8.4V 3A Regulated
Compatibility                Canon R5/R6/BMPCC
Interface                Canon LP-E6 Dummy
DB-E6P Connection Diagram
Bi-directional Converter

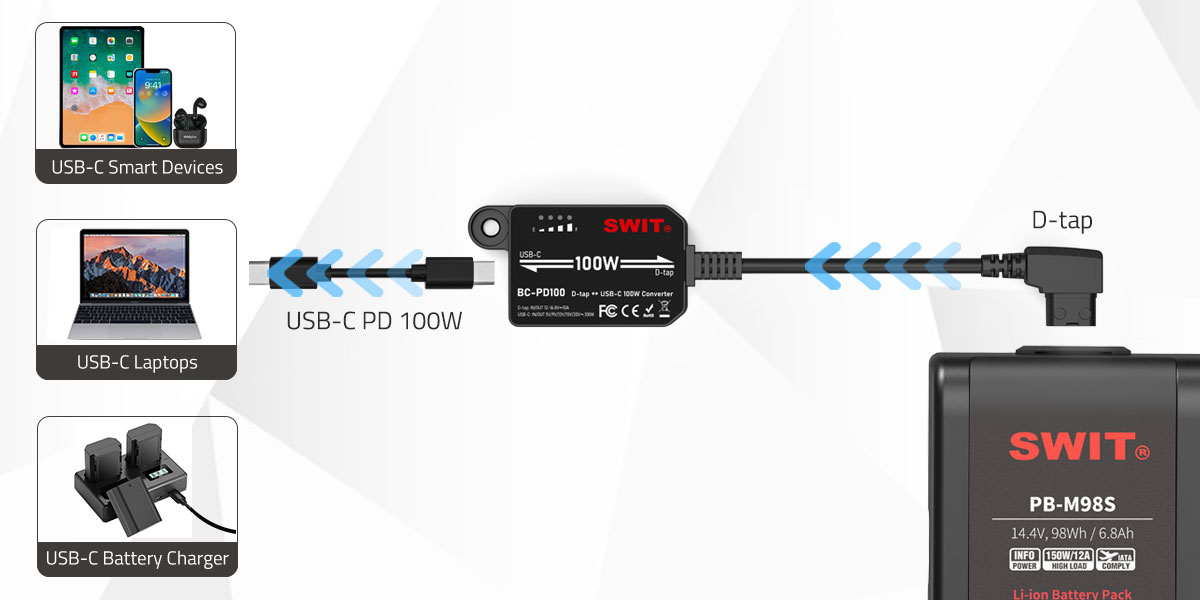

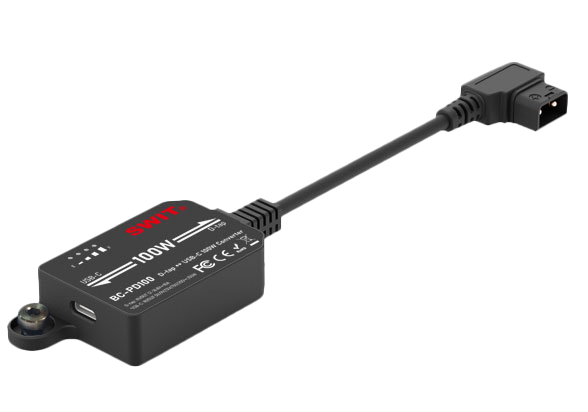

       BC-PD100 D-tap to USB-C Bi-directional Converter

BC-PD100

D-tap to USB-C 100W Bi-directional Converter

The BC-PD100 is a compact tool that allows users to either power USB-C devices from D-tap camera batteries (e.g. laptops, tablets, mirrorless cameras) or charge D-tap batteries via USB-C PD chargers. It supports up to 100W USB-C PD output, and includes a 1/4” screw bolt for easy rig mounting.

Input Options                USB-C PD / D-tap
Output Options                USB-C 100W / D-tap
Mount                1/4" Screw Hole
Bi-directional                Power & Charge
BC-PD100 Connection Diagram
Dual Device Solution

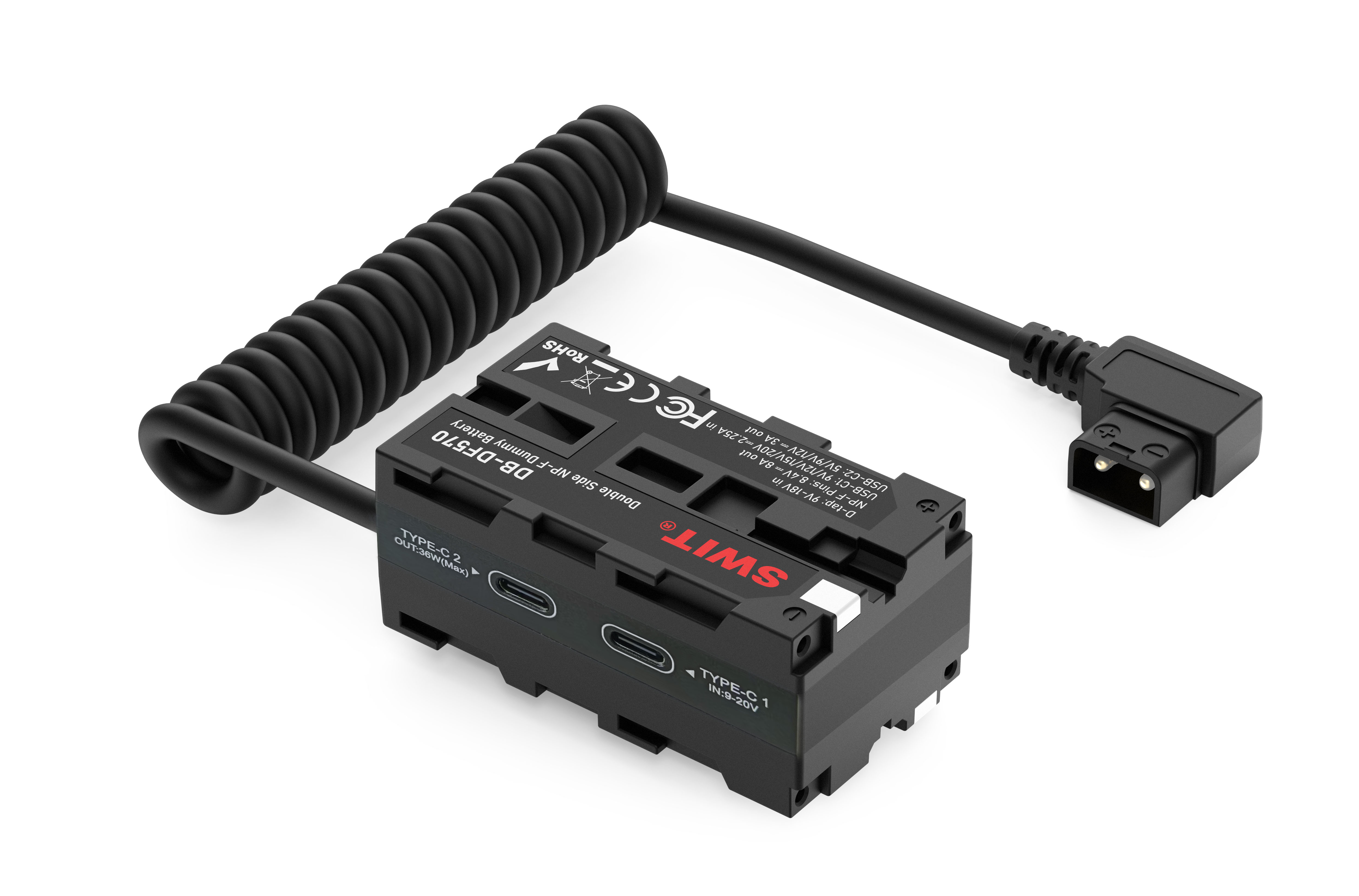

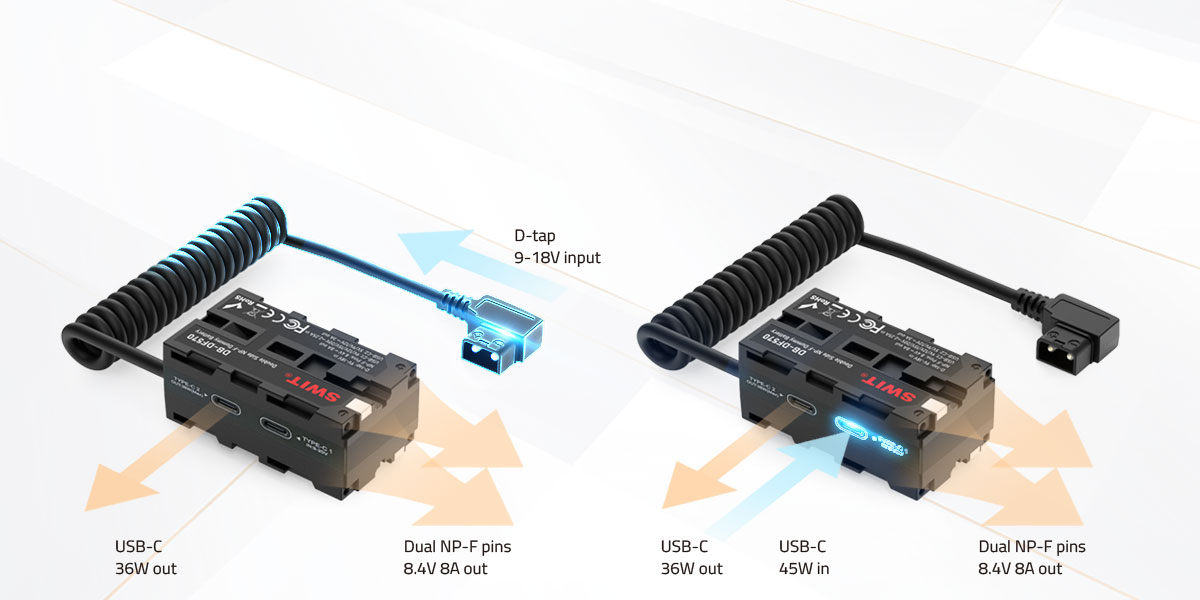

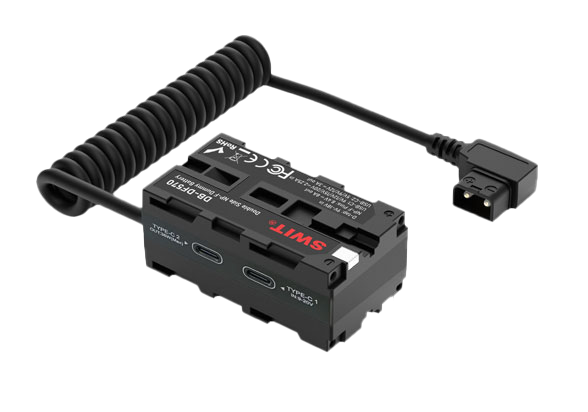

       DB-DF570 Dual Side NP-F Dummy Battery with USB-C

DB-DF570

Dual Side NP-F Dummy Battery with USB-C

This unique model powers two NP-F interface devices simultaneously—commonly a field monitor and wireless transmitter. It accepts D-tap or USB-C input and provides dual 8.4V/8A regulated output along with a 36W USB-C output. A built-in LED input voltage display ensures safe and informed operation.

Input                USB-C / D-tap
NP-F Output                2x 8.4V 8A Total
USB-C Output                36W PD Output
Features                LED Voltage Display
DB-DF570 Dual Output Diagram

Core Advantages

  • ✓  Universal Compatibility - Works with mainstream filmmaking devices, covering SONY, Canon, BMD, ZCAM and more brands.
  • ✓  Stable Power Delivery - Regulated output design, eliminate voltage fluctuations, ensure continuous stable device operation.
  • ✓  USB-C PD Support - All models support USB-C Power Delivery, compatible with power banks, laptop chargers, and more.
  • ✓  Smart Monitoring - Real-time voltage display, some models support battery info reading on camera.
  • ✓  Rugged Durability - Full metal housing, withstand high-intensity use in professional shooting scenarios.
  • ✓  Live-streaming Optimized - Compact design, perfect for mobile production and live streaming setups.

Full Technical Specifications

ModelInput PowerOutputKey Use Case
DB-DF570RD-tap 9-22V2x 8.4V 8A + USB-CRotatable dual NP-F power
KA-F20SV-mount 12-16.8V8.4V 4AV-mount to NP-F conversion
PA-D104D-tap 12-16.8V4x D-tap 10AMulti-device power expansion
DB-F570USB-C PD 9-20V8.4V 3ANP-F camera USB-C power
DB-FZ100USB-C PD 9-20V8.4V 3ASony FX3/FX30/A7 power
DB-E6PUSB-C PD 9-20V8.4V 3ACanon R5/R6/BMPCC power
BC-PD100USB-C / D-tap100W USB-C / D-tapBi-directional power conversion
DB-DF570USB-C / D-tap2x 8.4V + 36W USB-CDual NP-F device power
       More Accessories

Product Details:

  • DB-FZ100

    SONY NP-FZ100 USB-C Dummy Battery

    USB-C input to NP-FZ100 dummy, for SONY FX3, FX2, A7 series

  • DB-E6P

    Canon LP-E6P USB-C Dummy Battery

    USB-C input to LP-E6P dummy, for Canon EOS DLSR and mirroless cameras

  • DB-F570

    NP-F type USB-C Dummy Battery

    USB-C input to NP-F type dummy, for cameras and any video devices with...

  • DB-DF570R

    270° Rotate Dual Sided NP-F Dummy Battery with USB-C

    D-tap input, Dual sided NP-F and USB-C PD output. Update of 270° Rota...

  • DB-DF570

    Dual Side NP-F Dummy Battery with USB-C

    D-tap or USB-C input, to dual side NP-F output and USB-C output.

  • BC-PD100

    D-tap to USB-C 100W Bi-directional

    Upgrade camera batteries to adapt USB-C port, 100W constant load

  • PA-D104

    D-tap 1×4 Splitter Hub

    With in/out voltage display and 1/4" screw mount

  • KA-F20S

    V-mount to NP-F 8.4V Plate

    Regulated 8.4V NP-F output, universally compatible
